SpringMVC-SSM整合

• 掌握SSM整合流程
• 能够编写SSM整合功能模块类

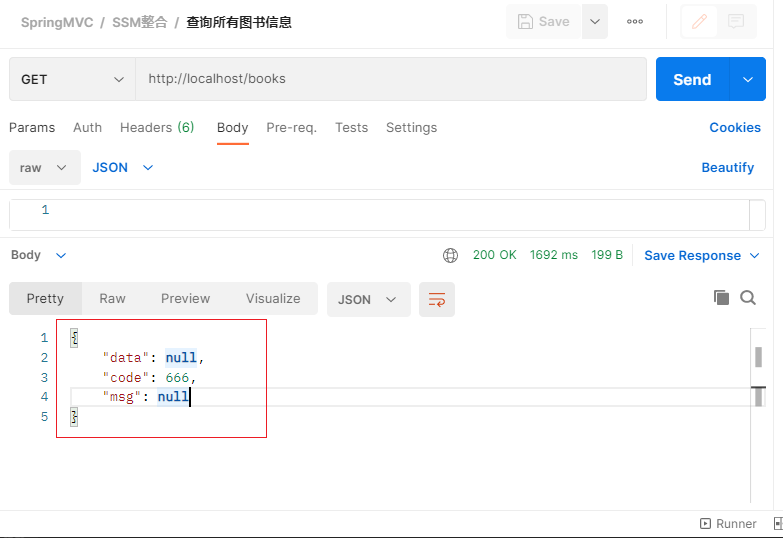

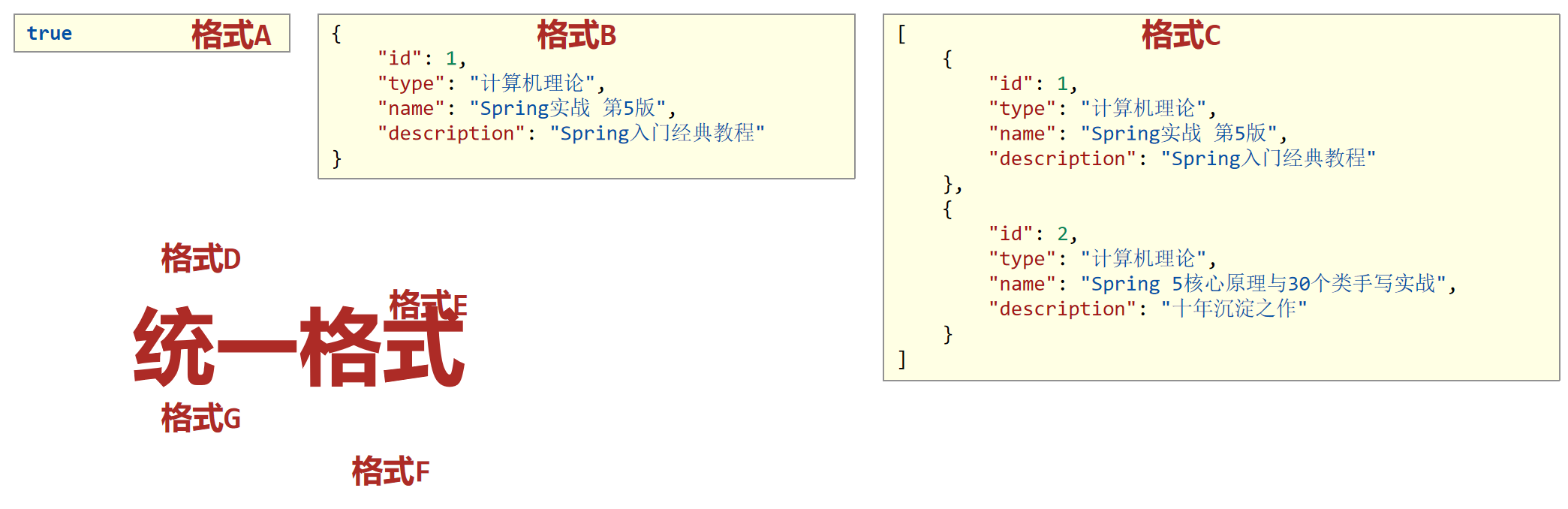

• 能够使用Result统一表现层响应结果

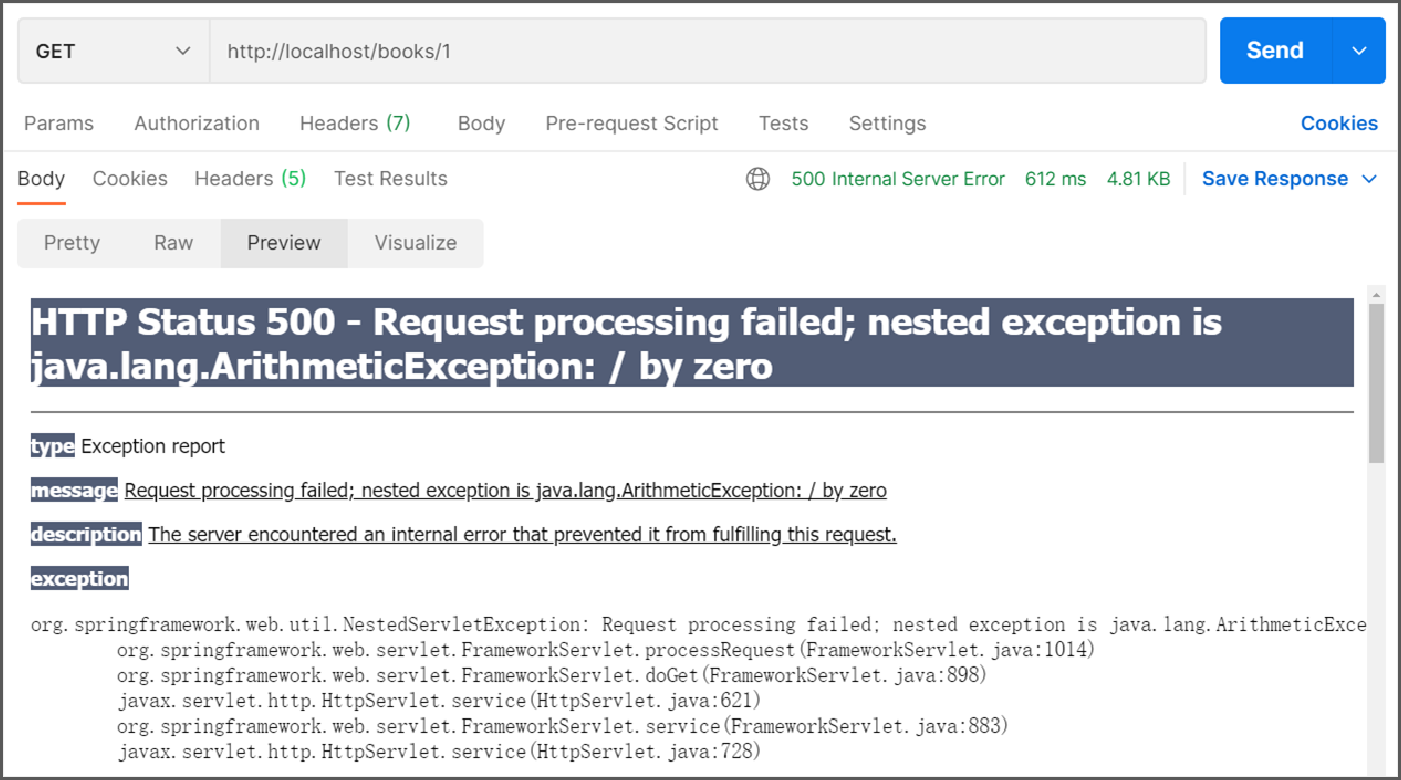

• 能够编写异常处理器进行项目异常的处理
• 能够完成SSM整合前端页面发送请求实现增删改查等操作

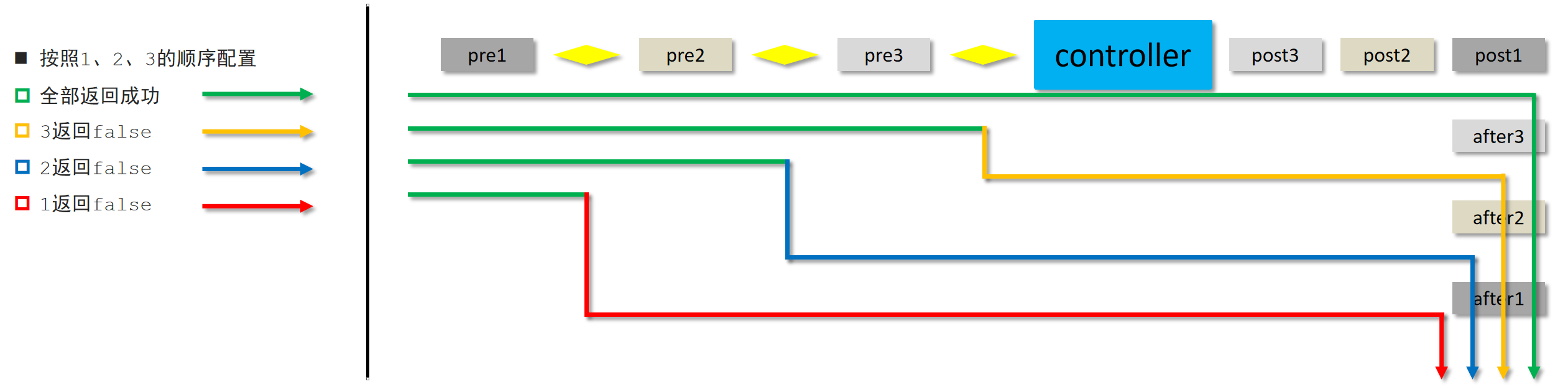

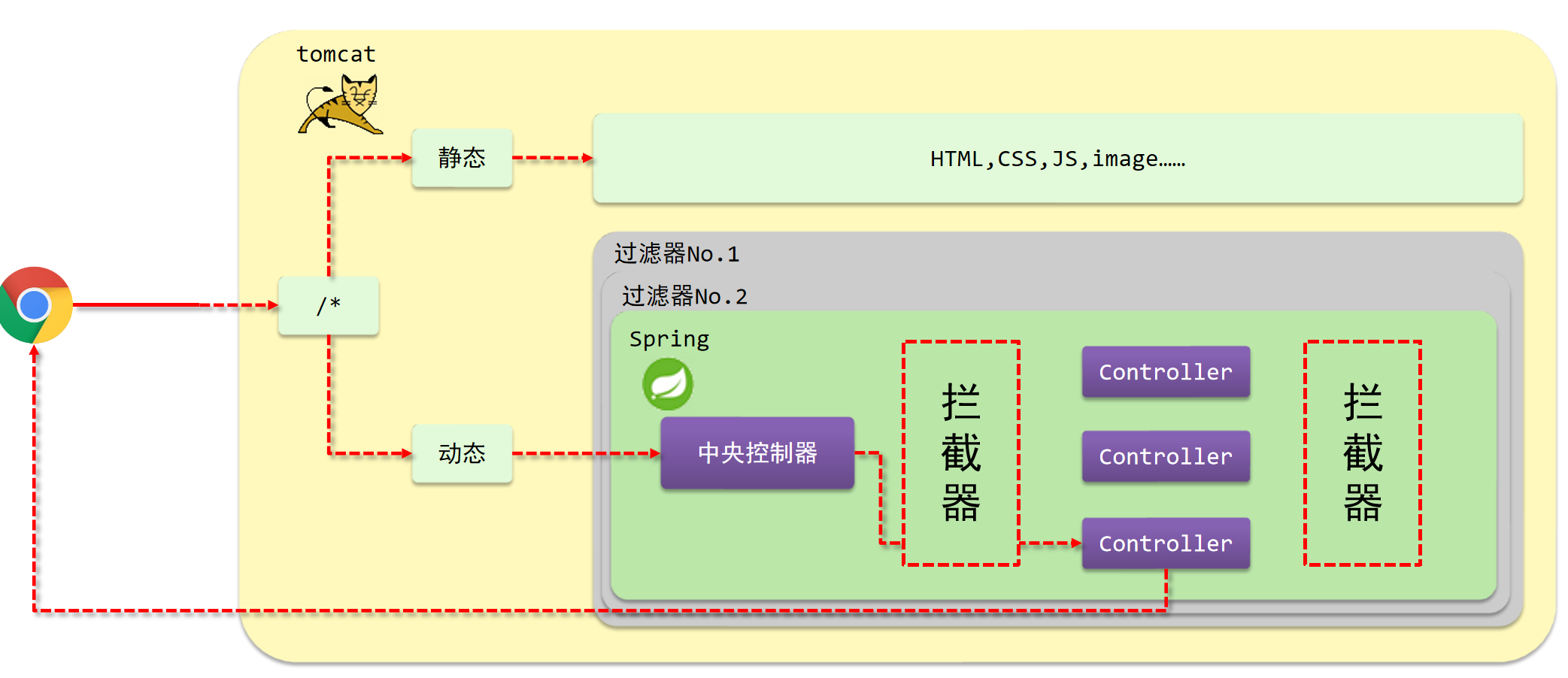

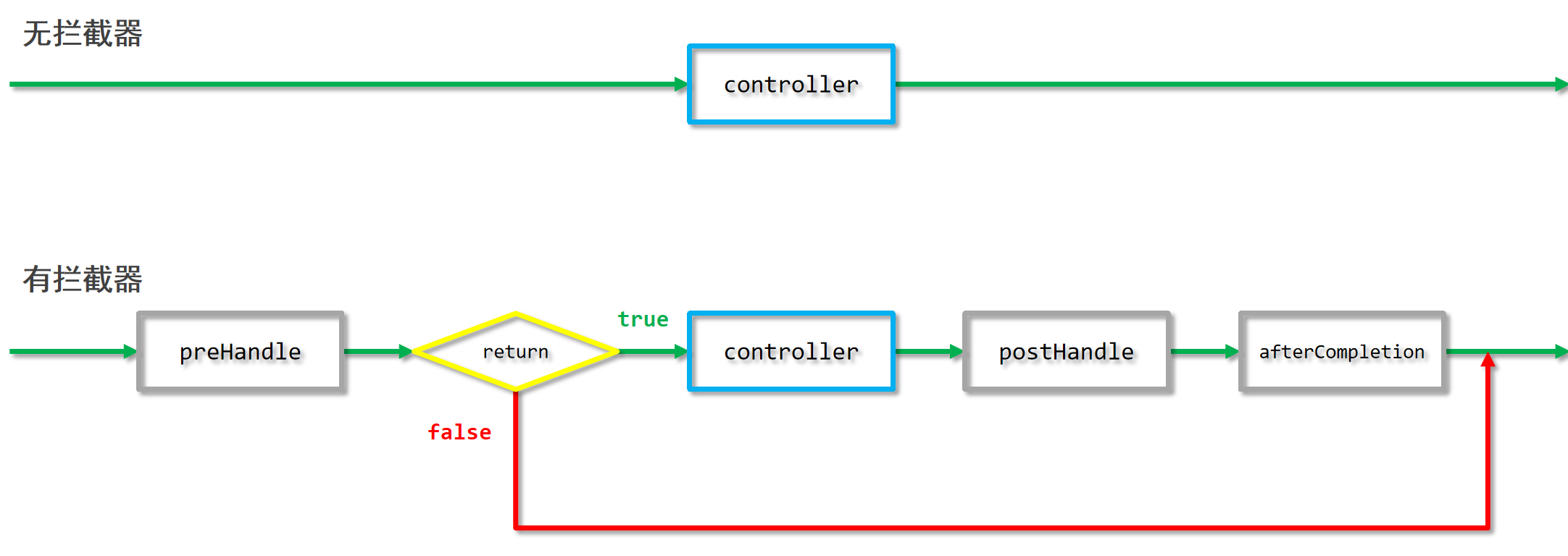

• 能够编写、配置拦截器

SSM整合(重点)

SSM整合配置

SSM整合流程

1. 创建工程
2. SSM整合
   1. Spring
      1. SpringConfig
   2. MyBatis
      1. MyBatisConfig
      2. DruidConfig
      3. druid.properties
   3. SpringMVC
      1. SpringMvcConfig
      2. ServletConfig
3. 功能模块
   1. 表和实体类
   2. dao/mapper(接口+自动代理)
   3. service(接口+实现类)
      1. 业务层接口测试整合JUnit
   4. controller

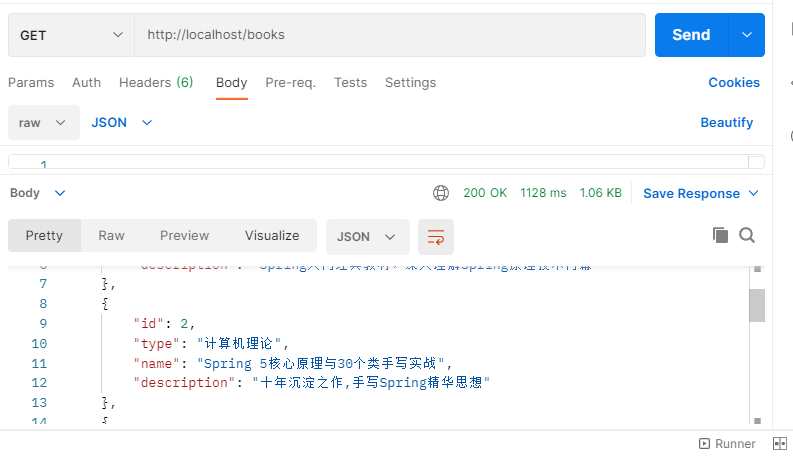

      1. 表现层接口测试(PostMan)

SSM整合配置

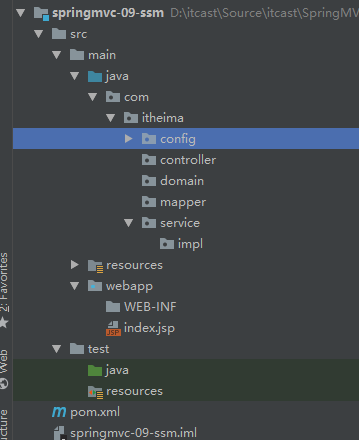

1. 创建webapp工程，引入依赖和插件

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.itheima</groupId>
  <artifactId>springmvc-09-ssm</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
  </properties>

  <dependencies>
    <!--Servlet-->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.1.0</version>
      <scope>provided</scope>
    </dependency>
    <!-- SpringMVC -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.2.10.RELEASE</version>
    </dependency>
    <!-- jackson -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.9.0</version>
    </dependency>
    <!-- mysql 驱动坐标 -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.48</version>
    </dependency>
    <!-- druid 依赖坐标 -->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>1.1.12</version>
    </dependency>
    <!-- MyBatis依赖 -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.5.6</version>
    </dependency>
    <!-- Spring整合MyBatis依赖 -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.0</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.2.10.RELEASE</version>
    </dependency>
    <!-- junit -->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.13</version>
    </dependency>
    <!-- spring 整合junit -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>5.2.10.RELEASE</version>
    </dependency>
  </dependencies>

</project>

2. Spring整合MyBatis

   1. 创建数据库和数据表

   -- 创建ssm_db数据库
   CREATE DATABASE IF NOT EXISTS ssm_db CHARACTER SET utf8;

   -- 使用ssm_db数据库
   USE ssm_db;

   -- 创建tbl_book表
   CREATE TABLE tbl_book(
       id INT PRIMARY KEY AUTO_INCREMENT, -- 图书编号
       TYPE VARCHAR(100), -- 图书类型
       NAME VARCHAR(100), -- 图书名称
       description VARCHAR(100) -- 图书描述
   );
   -- 添加初始化数据
   INSERT INTO tbl_book VALUES(NULL,'计算机理论','Spring实战 第5版','Spring入门经典教材，深入理解Spring原理技术内幕');
   INSERT INTO tbl_book VALUES(NULL,'计算机理论','Spring 5核心原理与30个类手写实战','十年沉淀之作,手写Spring精华思想');
   INSERT INTO tbl_book VALUES(NULL,'计算机理论','Spring 5设计模式','深入Spring源码剖析,Spring源码蕴含的10大设计模式');
   INSERT INTO tbl_book VALUES(NULL,'市场营销','直播就该这么做:主播高效沟通实战指南','李子柒、李佳琦、薇娅成长为网红的秘密都在书中');
   INSERT INTO tbl_book VALUES(NULL,'市场营销','直播销讲实战一本通','和秋叶一起学系列网络营销书籍');
   INSERT INTO tbl_book VALUES(NULL,'市场营销','直播带货:淘宝、天猫直播从新手到高手','一本教你如何玩转直播的书,10堂课轻松实现带货月入3W+');


   2. 创建duird.properties属性配置文件

   jdbc.driver=com.mysql.jdbc.Driver
   jdbc.url=jdbc:mysql://localhost:3306/ssm_db
   jdbc.username=root
   jdbc.password=1234


   3. 创建DruidConfig配置类

   package com.itheima.config;

   import com.alibaba.druid.pool.DruidDataSource;
   import org.springframework.beans.factory.annotation.Value;
   import org.springframework.context.annotation.Bean;
   import org.springframework.context.annotation.PropertySource;
   import org.springframework.jdbc.datasource.DataSourceTransactionManager;
   import org.springframework.transaction.PlatformTransactionManager;

   import javax.sql.DataSource;

   @PropertySource("classpath:druid.properties")
   public class DruidConfig {

       @Value("${jdbc.driver}")
       private String driver;

       @Value("${jdbc.url}")
       private String url;

       @Value("${jdbc.username}")
       private String username;

       @Value("${jdbc.password}")
       private String password;


       // 配置Druid数据库连接池
       @Bean
       public DataSource dataSource() {
           DruidDataSource dataSource = new DruidDataSource();
           dataSource.setDriverClassName(driver);
           dataSource.setUrl(url);
           dataSource.setUsername(username);
           dataSource.setPassword(password);
           return dataSource;
       }

       // Spring事务管理需要的平台事务管理器对象
       @Bean
       public PlatformTransactionManager transactionManager(DataSource dataSource) {
           DataSourceTransactionManager transactionManager = new DataSourceTransactionManager();
           transactionManager.setDataSource(dataSource);
           return transactionManager;
       }
   }


   4. MyBatisConfig配置类

   package com.itheima.config;

   import org.mybatis.spring.SqlSessionFactoryBean;
   import org.mybatis.spring.mapper.MapperScannerConfigurer;
   import org.springframework.context.annotation.Bean;

   import javax.sql.DataSource;

   public class MyBatisConfig {

       @Bean
       public SqlSessionFactoryBean sqlSessionFactoryBean(DataSource dataSource) {
           SqlSessionFactoryBean factoryBean = new SqlSessionFactoryBean();
           factoryBean.setDataSource(dataSource);
           factoryBean.setTypeAliasesPackage("com.itheima.domain");
           return factoryBean;
       }

       @Bean
       public MapperScannerConfigurer mapperScannerConfigurer() {
           MapperScannerConfigurer msc = new MapperScannerConfigurer();
           msc.setBasePackage("com.itheima.mapper");
           return msc;
       }
   }


   5. SpringConfig配置类

   package com.itheima.config;

   import org.springframework.context.annotation.ComponentScan;
   import org.springframework.context.annotation.Configuration;
   import org.springframework.context.annotation.Import;
   import org.springframework.transaction.annotation.EnableTransactionManagement;

   @Configuration
   @ComponentScan("com.itheima.service")
   @Import({DruidConfig.class, MyBatisConfig.class})
   @EnableTransactionManagement // 开启Spring事务管理
   public class SpringConfig {

   }


3. Spring整合SpringMVC

   1. SpringMvcConfig配置类

   package com.itheima.config;

   import org.springframework.context.annotation.ComponentScan;
   import org.springframework.context.annotation.Configuration;
   import org.springframework.web.servlet.config.annotation.EnableWebMvc;

   @Configuration
   @ComponentScan("com.itheima.controller")
   @EnableWebMvc
   public class SpringMvcConfig {
   }


   2. ServletConfig配置类，加载SpringMvcConfig和SpringConfig配置类

   package com.itheima.config;

   import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;

   public class ServletConfig extends AbstractAnnotationConfigDispatcherServletInitializer {

       @Override
       protected Class<?>[] getRootConfigClasses() {
           return new Class[]{SpringConfig.class};
       }

       @Override
       protected Class<?>[] getServletConfigClasses() {
           return new Class[]{SpringMvcConfig.class};
       }

       @Override
       protected String[] getServletMappings() {
           return new String[]{"/"};
       }

   }


功能模块开发

数据层开发(BookDao)

1. Book实体类

package com.itheima.domain;

/**
 * 图书实体模型
 * @author sunyy
 * @version 1.0
 * @since 2022.1.9
 */
public class Book {
    /**
     * 主键
     */
    private Integer id;
    /**
     * 类型
     */
    private String type;
    /**
     * 图书名称
     */
    private String name;
    /**
     * 图书描述
     */
    private String description;

    public Book() {
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getType() {
        return type;
    }

    public void setType(String type) {
        this.type = type;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getDescription() {
        return description;
    }

    public void setDescription(String description) {
        this.description = description;
    }

    @Override
    public String toString() {
        return "Book{" +
                "id=" + id +
                ", type='" + type + '\'' +
                ", name='" + name + '\'' +
                ", description='" + description + '\'' +
                '}';
    }
}

2. BookMapper代理接口

package com.itheima.mapper;

import com.itheima.domain.Book;
import org.apache.ibatis.annotations.Param;

import java.util.List;

/**
 * 图书持久层代理接口
 * @author sunyy
 * @version 1.0
 * @since 2022.1.9
 */
public interface BookMapper {
    /**
     * 添加图书
     * @param book
     * @return
     */
    int save(Book book);

    /**
     * 修改图书
     * @param book
     * @return
     */
    int update(Book book);

    /**
     * 根据id删除图书
     * @param id
     * @return
     */
    int deleteById(@Param("id") Integer id);

    /**
     * 根据id查询图书
     * @param id
     * @return
     */
    Book getById(@Param("id") Integer id);

    /**
     * 查询所有图书
     * @return
     */
    List<Book> getAll();
}

3. BookMapper.xml映射文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.itheima.mapper.BookMapper">
    <resultMap id="BookMap" type="com.itheima.domain.Book">
        <id column="id" property="id" />
        <result column="type" property="type" />
        <result column="name" property="name" />
        <result column="description" property="description" />
    </resultMap>
    <sql id="BookColumns">
        id, type, name, description
    </sql>
    <insert id="save" parameterType="Book">
        insert into tbl_book(type, name, description) values(#{type}, #{name}, #{description})
    </insert>
    <update id="update" parameterType="Book">
        update tbl_book
        <set>
            <if test="type != null and type != ''">
                type = #{type},
            </if>
            <if test="name != null and name != ''">
                name = #{name},
            </if>
            <if test="description != null and description != ''">
                description = #{description},
            </if>
        </set>
        where id = #{id}
    </update>
    <delete id="deleteById">
        delete from tbl_book where id = #{id}
    </delete>
    <select id="getById" resultMap="BookMap">
        select
        <include refid="BookColumns" />
        from tbl_book
        where id = #{id}
    </select>
    <select id="getAll" resultMap="BookMap">
        select
        <include refid="BookColumns" />
        from tbl_book
    </select>
</mapper>

业务层开发(BookService/BookServiceImpl)

1. BookService业务层接口

package com.itheima.service;

import com.itheima.domain.Book;
import org.springframework.transaction.annotation.Transactional;

import java.util.List;

/**
 * Book业务层接口
 * @author sunyy
 * @version 1.0
 * @since 2022.1.9
 */
@Transactional // 表示所有方法进行事务管理
public interface BookService {

    /**
     * 保存图书
     * @param book
     * @return
     */
    boolean save(Book book);

    /**
     * 修改图书
     * @param book
     * @return
     */
    boolean update(Book book);

    /**
     * 根据id删除图书
     * @param id
     * @return
     */
    boolean deleteById(Integer id);

    /**
     * 根据id获取图书信息
     * @param id
     * @return
     */
    Book getById(Integer id);

    /**
     * 查询全部图书信息
     * @return
     */
    List<Book> getAll();



}

2. BookServiceImpl业务层实现类

package com.itheima.service.impl;

import com.itheima.domain.Book;
import com.itheima.mapper.BookMapper;
import com.itheima.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * 图书业务层实现类
 * @author sunyy
 * @version 1.0
 * @since 2022.1.9
 */
@Service
public class BookServiceImpl implements BookService {

    @Autowired
    private BookMapper bookMapper;

    @Override
    public boolean save(Book book) {
        int count = bookMapper.save(book);
        return count > 0;
    }

    @Override
    public boolean update(Book book) {
        int count = bookMapper.update(book);
        return count > 0;
    }

    @Override
    public boolean deleteById(Integer id) {
        int count = bookMapper.deleteById(id);
        return count > 0;
    }

    @Override
    public Book getById(Integer id) {
        return bookMapper.getById(id);
    }

    @Override
    public List<Book> getAll() {
        return bookMapper.getAll();
    }
}

表现层开发(BookController)

package com.itheima.controller;

import com.itheima.domain.Book;
import com.itheima.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

/**
 * 图书表现层控制器
 */
@RestController
@RequestMapping("/books")
public class BookController {

    @Autowired
    private BookService bookService;

    /**
     * 保存图书
     * @param book
     * @return
     */
    @PostMapping
    public boolean save(@RequestBody Book book) {
        return bookService.save(book);
    }

    /**
     * 修改图书
     * @param book
     * @return
     */
    @PutMapping
    public boolean update(@RequestBody Book book) {
        return bookService.update(book);
    }

    /**
     * 根据id删除
     * @param id
     * @return
     */
    @DeleteMapping("/{id}")
    public boolean delete(@PathVariable("id") Integer id) {
        return bookService.deleteById(id);
    }

    /**
     * 根据id查询图书详情
     * @param id
     * @return
     */
    @GetMapping("/{id}")
    public Book getById(@PathVariable Integer id) {
        return bookService.getById(id);
    }

    /**
     * 查询所有图书信息
     * @return
     */
    @GetMapping
    public List<Book> getAll() {
        return bookService.getAll();
    }

}

接口测试

Spring整合Junit测试业务层方法

package com.itheima.service;

import com.itheima.config.SpringConfig;
import com.itheima.domain.Book;
import org.junit.Assert;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

import java.util.List;

/**
 * 使用Junit测试BookService业务层方法
 * @author sunyy
 * @version 1.0
 * @since 2022.1.9
 */
// 使用Spring整合Junit专用类加载器
@RunWith(SpringJUnit4ClassRunner.class)
// 使用配置类初始化容器
@ContextConfiguration(classes = SpringConfig.class)
public class BookServiceTest {

    @Autowired
    private BookService bookService;

    @Test
    public void testGetById() {
        Book book = bookService.getById(1);
        Assert.assertTrue(1 == book.getId());
    }

    @Test
    public void testGetAll() {
        List<Book> all = bookService.getAll();
        Assert.assertNotNull(all);
    }

}

PostMan测试表现层接口

表现层数据封装(重点)

表现层响应数据问题

通过上面BookController代码我们可以看到，表现层增删改查方法返回的数据五花八门，有返回true或者false的，还有返回一个JSON对象或者JSON数组的，这里就出现了三种格式的响应结果，极其不利于前端进行解析。

因此，为了方便前、后台开发人员联调，我们必须统一后台响应结果的格式。怎么做？

定义Result类封装响应结果

1. 创建Result类封装响应结果

package com.itheima.controller;

/**
 * 封装响应结果POJO类
 * @author sunyy
 * @version 1.0
 * @since 2023.1.10
 */
public class Result {
    // 描述统一格式中的数据
    private Object data;
    // 描述统一格式中的编码，用于区分操作，可以简化配置0或1表示成功或失败
    private Integer code;
    // 描述统一格式中的消息，可选属性
    private String msg;

    public Result() {
    }

    public Result(Integer code, Object data) {
        this.data = data;
        this.code = code;
    }

    public Result(Integer code, Object data, String msg) {
        this.data = data;
        this.code = code;
        this.msg = msg;
    }

    public Object getData() {
        return data;
    }

    public void setData(Object data) {
        this.data = data;
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }

    @Override
    public String toString() {
        return "Result{" +
                "data=" + data +
                ", code=" + code +
                ", msg='" + msg + '\'' +
                '}';
    }
}

注意

Result类中的字段并不是固定的，可以根据需要自行增减

2. 创建Code常量类封装响应状态码

package com.itheima.controller;

/**
 * Code接口封装响应状态码
 * @author sunyy
 * @version 1.0
 * @since 2023.1.10
 */
public interface Code {
    // 保存成功
    Integer SAVE_OK = 20011;
    // 删除成功
    Integer DELETE_OK = 20021;
    // 修改成功
    Integer UPDATE_OK = 20031;
    // 查询成功
    Integer GET_OK = 20041;

    // 保存失败
    Integer SAVE_ERR = 20010;
    // 删除失败
    Integer DELETE_ERR = 20020;
    // 修改失败
    Integer UPDATE_ERR = 20030;
    // 查询失败
    Integer GET_ERR = 20040;
}

注意

Code中的常量也不是固定的，可以根据需要自行增减。

表现层数据封装返回Result对象

package com.itheima.controller;

import com.itheima.domain.Book;
import com.itheima.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

/**
 * 图书表现层控制器
 */
@RestController
@RequestMapping("/books")
public class BookController {

    @Autowired
    private BookService bookService;

    /**
     * 保存图书
     * @param book
     * @return
     */
    @PostMapping
    public Result save(@RequestBody Book book) {
        boolean flag = bookService.save(book);
        return new Result(flag ? Code.SAVE_OK : Code.SAVE_ERR, flag);
    }

    /**
     * 修改图书
     * @param book
     * @return
     */
    @PutMapping
    public Result update(@RequestBody Book book) {
        boolean flag = bookService.update(book);
        return new Result(flag ? Code.UPDATE_OK : Code.UPDATE_ERR, flag);
    }

    /**
     * 根据id删除
     * @param id
     * @return
     */
    @DeleteMapping("/{id}")
    public Result delete(@PathVariable("id") Integer id) {
        boolean flag = bookService.deleteById(id);
        return new Result(flag ? Code.DELETE_OK : Code.DELETE_ERR, flag);
    }

    /**
     * 根据id查询图书详情
     * @param id
     * @return
     */
    @GetMapping("/{id}")
    public Result getById(@PathVariable Integer id) {
        Book book = bookService.getById(id);
        Integer code = book != null ? Code.GET_OK : Code.GET_ERR;
        String msg = book != null ? "" : "查询数据失败，请重试！";
        return new Result(code, book, msg);
    }

    /**
     * 查询所有图书信息
     * @return
     */
    @GetMapping
    public Result getAll() {
        List<Book> books = bookService.getAll();
        Integer code = books != null ? Code.GET_OK : Code.GET_ERR;
        String msg = books != null ? "" : "查询数据失败，请重试！";
        return new Result(code, books, msg);
    }

}

异常处理器(理解)

异常介绍

程序开发过程中不可避免的会出现异常，而且项目各个层级都可能会出现异常，在实际项目中，我们肯定不能染用户蛋刀这样的页面数据：

出现异常现象的常见位置与常见诱因如下：

• 框架内部抛出的异常：因使用不合规导致
• 数据层抛出异常：因外部服务器故障导致(例如：服务器访问超时)
• 业务层抛出异常：因业务逻辑书写错误导致(例如：遍历业务书写错误，导致索引下标越界等)
• 表现层抛出异常：因数据收集、校验等规则导致(例如：不匹配的数据类型转换导致异常)
• 工具类抛出异常：因工具类书写不严谨不够健壮导致(例如：必要的资源释放未释放等)

异常处理器

1. 编写异常处理器

package com.itheima.controller;

import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

/**
 * 异常处理器
 * @author sunyy
 * @version 1.0
 * @since 2023.1.10
 */
@RestControllerAdvice
public class ProjectExceptionAdvice {

    /**
     * 统一处理所有的Exception异常
     * @param ex
     * @return
     */
    @ExceptionHandler(Exception.class)
    public Result doOtherException(Exception ex) {
        return new Result(666, null);
    }

}

使用异常处理器之后的效果如下：

知识点13：@RestControllerAdvice注解

名称	@RestControllerAdvice
类型	类注解
位置	REST风格开发的控制器增强类定义上方
作用	为REST风格开发的控制器类做增强
说明	此注解自带@ResponseBody注解与@Component注解，并具备对应的功能

知识点14：@ExceptionHandler注解

名称	@ExceptionHandler
类型	方法注解
位置	专用于异常处理的控制器方法上方
作用	设置指定异常的处理方案，功能等同于控制器方法出现异常后终止原始控制器方法的执行，转入当前注解方法执行
说明	此类方法可以根据处理的异常不同，制作多个方法分别处理对应的异常

项目异常处理方案(理解)

项目异常分类

• 业务异常(BusinessException)
  • 规范的用户行为产生的异常
  • 不规范的用户行为操作产生的异常
• 系统异常(SystemException)
  • 项目运行过程中可预计且无法避免的异常
• 其他异常(Exception)
  • 编程人员未预期的异常

项目异常处理方案

• 业务异常(BusinessException)
  • 发送对应消息传递给用户，提醒规范操作
• 系统异常(SystemException)
  • 发送固定消息传递给用户，安抚用户
  • 发送特定消息给运维人员，提醒维护
  • 记录日志
• 其他异常
  • 发送固定消息给用户，安抚用户
  • 发送特定消息给开发者，提醒维护并纳入预期范围内
  • 记录日志

项目异常处理代码实现

根据异常分类创建自定义异常类

1. 自定义项目系统级异常

package com.itheima.exception;

/**
 * 自定义系统级异常，可预计不可避免的异常
 * @author sunyy
 * @version 1.0
 * @since 2023.1.10
 */
public class SystemException extends RuntimeException {
    /**
     * 异常代码
     */
    private Integer code;

    public SystemException(Integer code, String message) {
        super(message);
        this.code = code;
    }

    public SystemException(Integer code, String message, Throwable cause) {
        super(message, cause);
        this.code = code;
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }
}

2. 自定义项目业务级异常

package com.itheima.exception;

/**
 * 自定义项目业务级异常
 * @author sunyy
 * @version 1.0
 * @since 2023.1.10
 */
public class BusinessException extends RuntimeException {

    /**
     * 异常代码
     */
    private Integer code;

    public BusinessException(Integer code, String message) {
        super(message);
        this.code = code;
    }

    public BusinessException(Integer code,String message,Throwable cause) {
        super(message, cause);
        this.code = code;
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }
}

自定义异常编码(Code中持续补充)

package com.itheima.controller;

/**
 * Code接口封装响应状态码
 * @author sunyy
 * @version 1.0
 * @since 2023.1.10
 */
public interface Code {

    // 之前定义的状态码省略未写，下面是新补充的异常状态码
    // 当然也可以根据实际需要自己继续补充

    // 系统级异常
    Integer SYSTEM_ERR = 50001;
    // 超时异常
    Integer SYSTEM_TIMEOUT_ERR = 50002;
    // 位置异常
    Integer SYSTEM_UNKNOW_ERR = 59999;
    // 业务级异常
    Integer BUSINESS_ERR = 60002;
}

触发自定义异常

package com.itheima.service.impl;

import com.itheima.controller.Code;
import com.itheima.domain.Book;
import com.itheima.exception.BusinessException;
import com.itheima.mapper.BookMapper;
import com.itheima.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * 图书业务层实现类
 * @author sunyy
 * @version 1.0
 * @since 2022.1.9
 */
@Service
public class BookServiceImpl implements BookService {

    @Autowired
    private BookMapper bookMapper;

    // 在getById业务层方法中演示触发异常，其他方法省略未写
    @Override
    public Book getById(Integer id) {
        // 模拟业务异常，包装成自定义业务异常
        if (id < 0) {
            throw new BusinessException(Code.BUSINESS_ERR, "请不要使用你的技术挑战我的耐心!");
        }
        return bookMapper.getById(id);
    }

}

在异常通知类中拦截并处理异常

package com.itheima.controller;

import com.itheima.exception.BusinessException;
import com.itheima.exception.SystemException;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

/**
 * 异常处理器
 * @author sunyy
 * @version 1.0
 * @since 2023.1.10
 */
@RestControllerAdvice // 用于标识当前类为REST风格对应的异常处理器
public class ProjectExceptionAdvice {

    // @ExceptionHandler用于设置当前处理器类方法抛出的异常类型
    @ExceptionHandler(SystemException.class)
    public Result doSystemException(SystemException ex) {
        // 记录日志
        // 发送消息给运维
        // 发送右键给开发人员, ex对象发送给开发人员
        return new Result(ex.getCode(), null , ex.getMessage());
    }

    @ExceptionHandler(BusinessException.class)
    public Result doBusinessException(BusinessException ex) {
        return new Result(ex.getCode(), null, ex.getMessage());
    }

    /**
     * 统一处理所有的Exception异常
     * 除自定义异常处理器，保留对Exception类型的异常处理，用于处理非预期的异常
     * @param ex
     * @return
     */
    @ExceptionHandler(Exception.class)
    public Result doOtherException(Exception ex) {
        // 记录日志
        // 发送消息给运维
        // 发送邮件给开发人员, ex对象发送给开发人员
        return new Result(Code.SYSTEM_UNKNOW_ERR, null, "系统繁忙，请稍后再试!");
    }

}

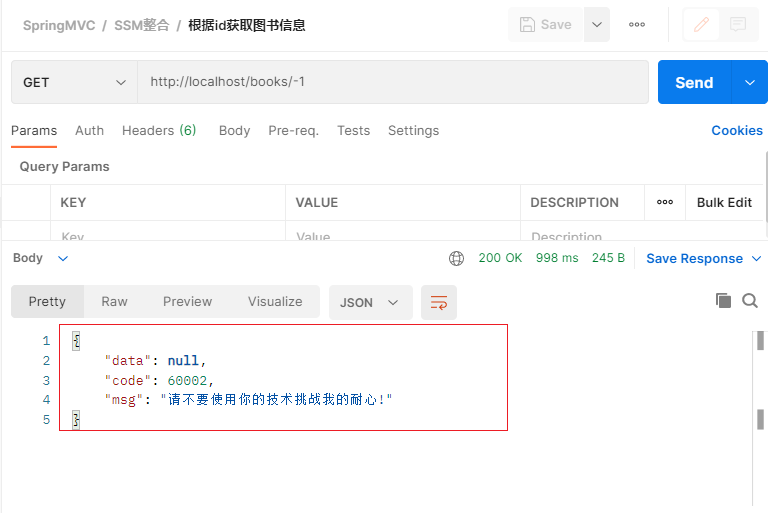

测试验证：在PostMan中发送请求http://localhost/books/-1，传递路径参数-1，得到如下结果

SSM整合页面开发(重点)

准备工作

为了确保静态资源能够被访问，需要设置静态资源过滤

package com.itheima.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;

/**
 * 静态资源过滤处理
 * @author sunyy
 * @version 1.0
 * @since 2023.1.10
 */
@Configuration
public class SpringMvcSupport extends WebMvcConfigurationSupport {
    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/pages/**").addResourceLocations("/pages/");
        registry.addResourceHandler("/css/**").addResourceLocations("/css/");
        registry.addResourceHandler("/js/**").addResourceLocations("/js/");
        registry.addResourceHandler("/plugins/**").addResourceLocations("/plugins/");
    }
}

package com.itheima.config;

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;

@Configuration
@ComponentScan({"com.itheima.controller", "com.itheima.config"})
@EnableWebMvc
public class SpringMvcConfig {
}

列表查询功能

//列表
getAll() {
    //发送ajax请求
    axios.get("/books").then((res)=>{
        this.dataList = res.data.data;
    });
},

添加功能

//弹出添加窗口
handleCreate() {
    this.dialogFormVisible = true;
    this.resetForm();
},

//重置表单
resetForm() {
    this.formData = {};
},

//添加
handleAdd () {
    //发送ajax请求
    axios.post("/books",this.formData).then((res)=>{
        console.log(res.data);
        //如果操作成功，关闭弹层，显示数据
        if(res.data.code == 20011){
            this.dialogFormVisible = false;
            this.$message.success("添加成功");
        }else if(res.data.code == 20010){
            this.$message.error("添加失败");
        }else{
            this.$message.error(res.data.msg);
        }
    }).finally(()=>{
        this.getAll();
    });
},

修改功能

//弹出编辑窗口
handleUpdate(row) {
    // console.log(row);   //row.id 查询条件
    //查询数据，根据id查询
    axios.get("/books/"+row.id).then((res)=>{
        // console.log(res.data.data);
        if(res.data.code == 20041){
            //展示弹层，加载数据
            this.formData = res.data.data;
            this.dialogFormVisible4Edit = true;
        }else{
            this.$message.error(res.data.msg);
        }
    });
},

//编辑
handleEdit() {
    //发送ajax请求
    axios.put("/books",this.formData).then((res)=>{
        //如果操作成功，关闭弹层，显示数据
        if(res.data.code == 20031){
            this.dialogFormVisible4Edit = false;
            this.$message.success("修改成功");
        }else if(res.data.code == 20030){
            this.$message.error("修改失败");
        }else{
            this.$message.error(res.data.msg);
        }
    }).finally(()=>{
        this.getAll();
    });
},

删除功能

// 删除
handleDelete(row) {
    //1.弹出提示框
    this.$confirm("此操作永久删除当前数据，是否继续？","提示",{
        type:'info'
    }).then(()=>{
        //2.做删除业务
        axios.delete("/books/"+row.id).then((res)=>{
            if(res.data.code == 20021){
                this.$message.success("删除成功");
            }else{
                this.$message.error("删除失败");
            }
        }).finally(()=>{
            this.getAll();
        });
    }).catch(()=>{
        //3.取消删除
        this.$message.info("取消删除操作");
    });
}

拦截器(理解)

拦截器简介

拦截器概念和作用

• **拦截器(Interceptor)**是一种动态拦截方法调用机制，在SpringMVC中动态拦截控制器方法的执行
• 作用：
  • 在指定的方法调用前后执行预先设定的代码
  • 阻止原始方法的执行
  • 总结：增强原始控制器方法
• 核心原理：AOP思想

拦截器和过滤器的区别

• 归属不同：Filter属于Servlet技术，Interceptor属于SpringMVC技术
• 拦截内容不同：Filter对所有访问进行增强，Interceptor仅针对SpringMVC的访问进行增强

拦截器入门案例

1. 基于Maven骨架创建模块
2. 引入SpringMVC、Servlet、jackson等依赖坐标

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.itheima</groupId>
    <artifactId>springmvc-10-interceptor</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
    </properties>

    <dependencies>
        <!--Servlet-->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>
        <!-- SpringMVC -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>
        <!-- jackson -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.9.0</version>
        </dependency>
    </dependencies>

</project>

3. 创建配置类

package com.itheima.config;

import org.springframework.web.filter.CharacterEncodingFilter;
import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;

import javax.servlet.Filter;

public class ServletConfig extends AbstractAnnotationConfigDispatcherServletInitializer {

    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[0];
    }

    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{SpringMvcConfig.class};
    }

    @Override
    protected String[] getServletMappings() {
        return new String[]{"/"};
    }

    /**
     * Post请求中文乱码处理
     * @return
     */
    @Override
    protected Filter[] getServletFilters() {
        CharacterEncodingFilter filter = new CharacterEncodingFilter();
        filter.setEncoding("UTF-8");
        return new Filter[]{filter};
    }

}

package com.itheima.config;

import com.itheima.controller.interceptor.ProjectInterceptor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@Configuration
@ComponentScan({"com.itheima.controller"})
@EnableWebMvc
public class SpringMvcConfig {
}

4. 创建控制器类

package com.itheima.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/books")
public class BookController {

    @GetMapping
    public String getAll() {
        System.out.println("book controller getAll ...");
        return "{'module': 'book controller getAll'}";
    }

}

5. 定义拦截器

package com.itheima.controller.interceptor;

import org.springframework.stereotype.Component;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * 拦截器类
 * @author sunyy
 * @version 1.0
 * @since 2023.1.10
 */
// 当前类必须受Spring容器管理
// 定义拦截器类，实现HandlerInterceptor接口
@Component
public class ProjectInterceptor implements HandlerInterceptor {

    /**
     * 元素方法调用前执行的内容
     * 返回值类型可以拦截控制器方法的执行，true表示放行，false表示终止
     * @param request
     * @param response
     * @param handler
     * @return
     * @throws Exception
     */
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        System.out.println("preHandle ... ");
        return true;
    }

    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView)
    throws Exception {
        System.out.println("postHandle ... ");
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)
    throws Exception {
        System.out.println("afterCompletion ... ");
    }
}

6. 配置加载拦截器，有两种方式

   1. 方式一：

   package com.itheima.config;

   import com.itheima.controller.interceptor.ProjectInterceptor;
   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.context.annotation.Configuration;
   import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
   import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
   import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;

   /**
   * 静态资源过滤处理 以及 拦截器注册
   * @author sunyy
   * @version 1.0
   * @since 2023.1.10
   */
   // 方式一：继承WebMvcConfigurationSupport
   @Configuration
   public class SpringMvcSupport extends WebMvcConfigurationSupport {

       @Autowired
       private ProjectInterceptor projectInterceptor;

       @Override
       protected void addInterceptors(InterceptorRegistry registry) {
           // 配置拦截器
           registry.addInterceptor(projectInterceptor).addPathPatterns("/books", "/books/*");
       }

       @Override
       protected void addResourceHandlers(ResourceHandlerRegistry registry) {
           registry.addResourceHandler("/pages/**").addResourceLocations("/pages/");
           registry.addResourceHandler("/css/**").addResourceLocations("/css/");
           registry.addResourceHandler("/js/**").addResourceLocations("/js/");
           registry.addResourceHandler("/plugins/**").addResourceLocations("/plugins/");
       }
   }


   package com.itheima.config;

   import com.itheima.controller.interceptor.ProjectInterceptor;
   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.context.annotation.ComponentScan;
   import org.springframework.context.annotation.Configuration;
   import org.springframework.web.servlet.config.annotation.EnableWebMvc;
   import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
   import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
   import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

   @Configuration
   // 方式一：
   @ComponentScan({"com.itheima.controller", "com.itheima.config"})
   @EnableWebMvc
   public class SpringMvcConfig implements WebMvcConfigurer {
   }


   2. 方式二:

   package com.itheima.config;

   import com.itheima.controller.interceptor.ProjectInterceptor;
   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.context.annotation.ComponentScan;
   import org.springframework.context.annotation.Configuration;
   import org.springframework.web.servlet.config.annotation.EnableWebMvc;
   import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
   import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
   import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

   @Configuration
   // 方式一：
   // @ComponentScan({"com.itheima.controller", "com.itheima.config"})
   @ComponentScan({"com.itheima.controller"})
   @EnableWebMvc
   // 方式二：实现WebMvcConfigurer接口可以简化开发，但是有一定的侵入性
   public class SpringMvcConfig implements WebMvcConfigurer {

       @Autowired
       private ProjectInterceptor projectInterceptor;

       @Override
       public void addInterceptors(InterceptorRegistry registry) {
           // 配置拦截器
           registry.addInterceptor(projectInterceptor).addPathPatterns("/books", "/books/*");
       }

       @Override
       public void addResourceHandlers(ResourceHandlerRegistry registry) {
           registry.addResourceHandler("/pages/**").addResourceLocations("/pages/");
           registry.addResourceHandler("/css/**").addResourceLocations("/css/");
           registry.addResourceHandler("/js/**").addResourceLocations("/js/");
           registry.addResourceHandler("/plugins/**").addResourceLocations("/plugins/");
       }
   }


拦截器流程分析

拦截器参数

前置处理

/**
 * 元素方法调用前执行的内容
 * 返回值类型可以拦截控制器方法的执行，true表示放行，false表示终止
 * @param request
 * @param response
 * @param handler
 * @return
 * @throws Exception
 */
@Override
public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
    System.out.println("preHandle ... ");
    return true;
}

• 参数
  • request: 请求对象
  • response: 响应对象
  • handler: 被调用的处理器对象，本质上是一个方法对象，对反射技术中的Method对象进行了再封装
• 返回值：false--被拦截的处理器方法将不会执行

后置处理

// 原始方法调用后执行的内容
@Override
public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView)
throws Exception {
    System.out.println("postHandle ... ");
}

• 参数
  • modelAndView：如果处理器执行完成具有返回结果，可以读取到对应的数据与页面信息，并进行页面跳转

注意

如果处理器方法出现了异常，该方法不会执行

完成后处理

// 原始方法调用完成后执行的内容，控制器方法出异常也会执行
@Override
public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)
throws Exception {
    System.out.println("afterCompletion ... ");
}

• 参数
  • ex：如果处理器方法执行过程中出现异常对象，可以针对该异常进行单独处理

注意

无论处理器方法内部是否会出现异常，该方法都会执行，但前提必须是preHandle方法返回true

拦截器链配置

多个拦截器的配置

1. 定义第二个拦截器

package com.itheima.controller.interceptor;

import org.springframework.stereotype.Component;
import org.springframework.web.method.HandlerMethod;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * 拦截器类
 * @author sunyy
 * @version 1.0
 * @since 2023.1.10
 */
// 当前类必须受Spring容器管理
// 定义拦截器类，实现HandlerInterceptor接口
@Component
public class ProjectInterceptor2 implements HandlerInterceptor {

    /**
     * 元素方法调用前执行的内容
     * 返回值类型可以拦截控制器方法的执行，true表示放行，false表示终止
     * @param request
     * @param response
     * @param handler
     * @return
     * @throws Exception
     */
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        System.out.println("preHandle ... 222");
        return true;
    }

    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView)
    throws Exception {
        System.out.println("postHandle ... 222");
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)
    throws Exception {
        System.out.println("afterCompletion ... 222");
    }
}

2. 配置第二个拦截器生效

package com.itheima.config;

import com.itheima.controller.interceptor.ProjectInterceptor;
import com.itheima.controller.interceptor.ProjectInterceptor2;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@Configuration
// 方式一：
// @ComponentScan({"com.itheima.controller", "com.itheima.config"})
@ComponentScan({"com.itheima.controller"})
@EnableWebMvc
// 方式二：实现WebMvcConfigurer接口可以简化开发，但是有一定的侵入性
public class SpringMvcConfig implements WebMvcConfigurer {

    @Autowired
    private ProjectInterceptor projectInterceptor;

    @Autowired
    private ProjectInterceptor2 projectInterceptor2;

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        // 配置拦截器
        registry.addInterceptor(projectInterceptor).addPathPatterns("/books", "/books/*");
        registry.addInterceptor(projectInterceptor2).addPathPatterns("/books", "/books/*");
    }

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/pages/**").addResourceLocations("/pages/");
        registry.addResourceHandler("/css/**").addResourceLocations("/css/");
        registry.addResourceHandler("/js/**").addResourceLocations("/js/");
        registry.addResourceHandler("/plugins/**").addResourceLocations("/plugins/");
    }
}

多个拦截器工作流程分析

• 当配置多个拦截器时，会形成拦截器链
• 拦截器链的运行顺序按照拦截器添加顺序为准
• 当拦截器中出现原始处理器的拦截，后面的拦截器均终止运行
• 当拦截器运行中断，进运行配置在前面的拦截器的afterCompletion操作
